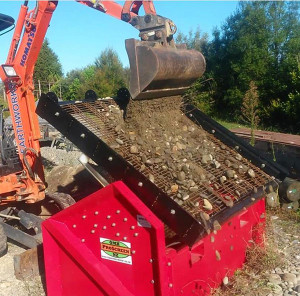

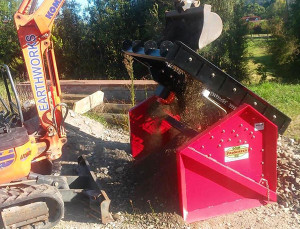

The SLG-60V is a compact portable vibratory screen designed to screen and recycle topsoil, sand, compost, wood waste and rock products. This screener is designed to be fed with compact bucket tractors and smaller skid steers with buckets less than 60 inches in width.
Please contact us on Ph: 03 970 7602 or Email us: Site Machinery to discuss this product.
Transportation
The SLG-60V can be moved around the worksite using pallet forks inserted into the screener’s lift pockets. We also can supply our bucket lift lug assemblies if the customer wants to use the machines bucket for moving the screener.
Vibratory System
The SLG-60V uses the same size and model vibratory system as the larger SLG-78VF screener. The vibratory system draws approximately 5amps of power to operate. Land power or a generator as small as 2000 watts can be used to power the screener’s vibratory system. When using a good quality heavy duty extension cord the generator can be up to 100ft from the screener, away from the dirt and dust that comes when screening. The vibratory motor uses 110 volt electricity.
Screen Deck Suspension
As with the other SLG model screeners the 60V uses a cantilevered screen deck suspension system. The protected design allows the operator to manipulate the screen deck slope during the screening process for maximum screening efficiency.
Manufacture Design
Although the SLG-60V is smaller both in height, weight, and width than the larger 78VF model, the construction and metal thickness of the 60V is the same as the larger 78 model. CNC form all plate components are laser cut for a quality precision fit.
Surface Finish
The SLG-60V comes with a Hammertone Powder Coat durable finish. Steel surfaces are shot blast previous to the painting process. Bolt on components have been anodized to resist the elements of weather.
Mesh Screens
The SLG-60V comes fitted with a 3/4 x 4” elongated triple chute weave. This is the most commonly requested mesh for screening soil. We offer mesh in both elongated and square pattern, depending upon the customer’s needs.
Square Pattern Mesh: 1/8, 1/4, 3/8, 1/2, 3/4, 1”, 1-1/4”, 1-1/2”, 2”, and 4”
Elongated Pattern Mesh: 1/8” x 4”, 1/4” x 4”, 3/8” x 4”, 1/2″ x 4”, 3/4” x 4”, and 1” x 4”
Assembly
The SLG-60V comes in a compact package so that we can offer the lowest possible shipping costs to our customers. Assembly can be done with basic hand tools in about 4 to 5 hours. If electric or air tools and a helper are available, assembly can be done in about 3 hours.
Specifications
Screen Box
Feed Height: 65 inches
Machine Width: 70 inches
Machine Depth: 49 inches
Weight: 1200 pounds
Screen Deck
Width: 58 inches
Length: 52 inches
Mesh Opening
Width: 58 inches
Length: 52 inches
Screening Surface Area: 21 sq/ft
Vibratory System
Voltage: 110 (USA /CA 60 Hertz)
Voltage: 220 (Europe 50 Hertz)
Amperage: 5amps
RPM: 3000
Minimum power: 2000watts
